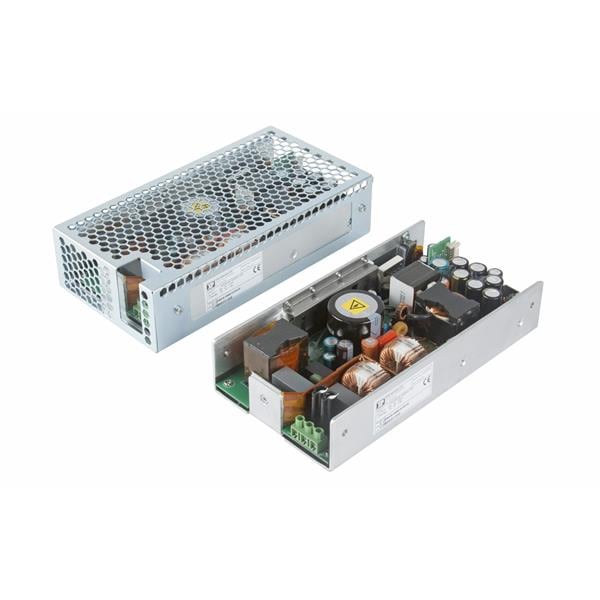

XP Power CMP250PS24 AC-DC Converter AC-DC, 250W, ITE & Medical, 500W Peak

Width: 101.6 mm (4 in)

Height: 39.9 mm (1.571 in)

Length: 190.5 mm (7.5 in)

Industry: Medical, Industrial

Approvals: IEC60950-1 Ed 2, IEC62368-1 Ed 2, IEC60601-1 Ed 3

Compliance: IEC60950-1 Ed 2, IEC62368-1 Ed 2, IEC60601-1 Ed 3

Efficiency: 89 %

Unit Weight: 1 kg

Output Power: 250 W

Input Voltage: 80 VAC to 300 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Power - Convection: 250 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 10.4 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 40 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
