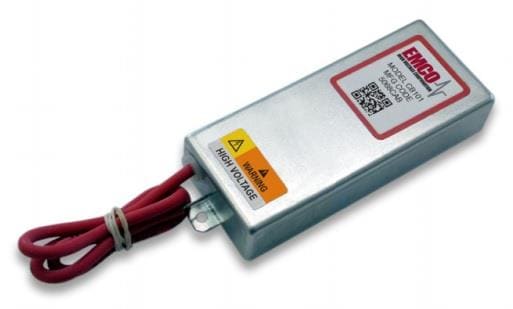

XP Power CB101 Non-Isolated / PoL SINGLE O/P, DC-HV DC PCB MOUNT, 1W,+10kV
ManufacturerXP Power(View more products from this manufacturer)
ModelCB101
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 31.8 mm (1.252 in)
Height: 15.24 mm (0.6 in)
Length: 76.2 mm (3 in)
Industry: Industrial
Unit Weight: 85 g
Mounting Style: Through Hole
Number of Outputs: 1 Output
Input Voltage - Max: 16 V
Input Voltage - Min: 11.5 V
Input Voltage, Nominal: 12 V
Output Current-Channel 1: 100 uA
Output Voltage-Channel 1: 0 V to 10 kV
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 10 C
