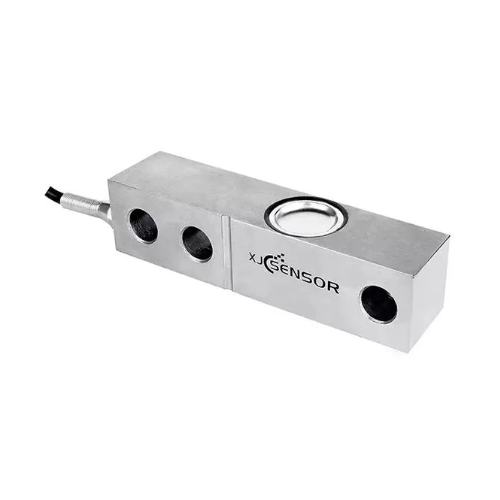

XJCSENSOR X-X08 Compression Load Cell (0-10000kg)

Capacity: 0-10000 Kg

Material: Stainless steel / Alloy steel

Nonlinearity: 0.05%F.S.

Rated output: 2.0±10%mV/V

Recommended excitation: 5-10VDC

Maximum excitation: 15VDC

Hysteresis: 0.05%F.S.

Compensated temp range: -10~40°C

Repeatability: 0.05%F.S.

Operating temp range: -20~80°C

Input impedance: 400±50Ω

Insulation: ≥5000MΩ/100VDC

Creep(30min): 0.1%F.S.

Output impedance: 350±5Ω

Zero balance: ±2 %F.S

Temp effect on output: 0.05%F.S./10°C

.Limit load: 150%

Temp effect on zero: 0.05%F.S./10°C

Cable size: Ø3x3m

Breaking load: 200%

Life: Full scale more than 1 million times

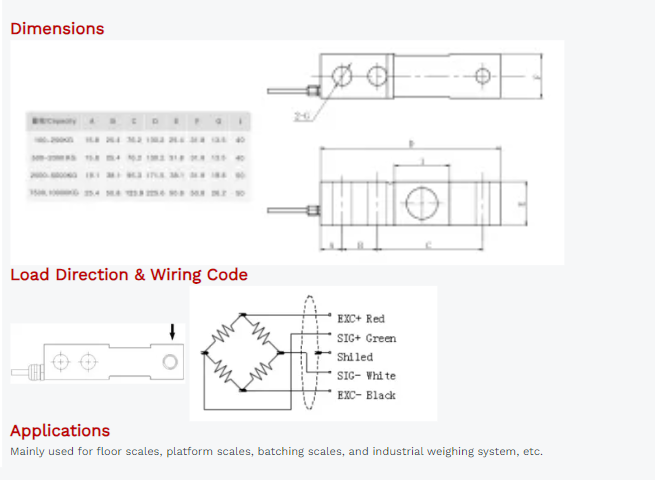

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

Detail
