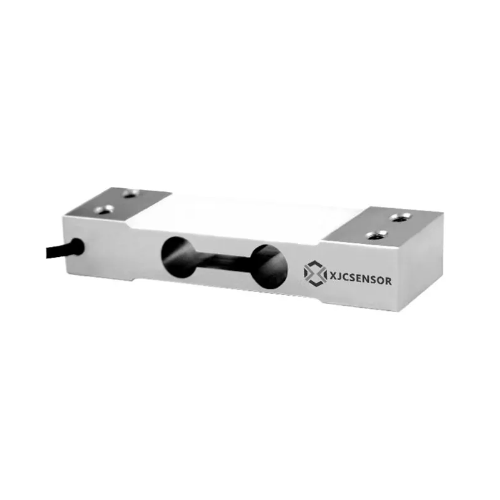

XJCSENSOR X-X01 Compression Load Cell (250kg)

Capacity (Optional): 3kg,5kg,10kg,20kg, 50kg,100kg,250kg

Material: Aluminum alloy

Nonlinearity: 0.03%F.S.

Rated output: 2.0±10%mV/V

Recommended excitation: 5-10VDC

Maximum excitation: 10VDC

Hysteresis: 0.03%F.S.

Compensated temp range: -10~40°C

Repeatability: 0.03%F.S.

Operating temp range: -20~80°C

Input impedance: 400±50Ω

Insulation: ≥5000MΩ/100VDC

Creep(30min): 0.03%F.S.

Output impedance: 350±5Ω

Zero balance: ±2 %F.S

Temp effect on output: 0.05%F.S./10°C

Safe load limit: 150%

Temp effect on zero: 0.05%F.S./10°C

Cable size: 4x4m

Ultimate load limits: 200%

Life: Full scale more than 1 million times

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

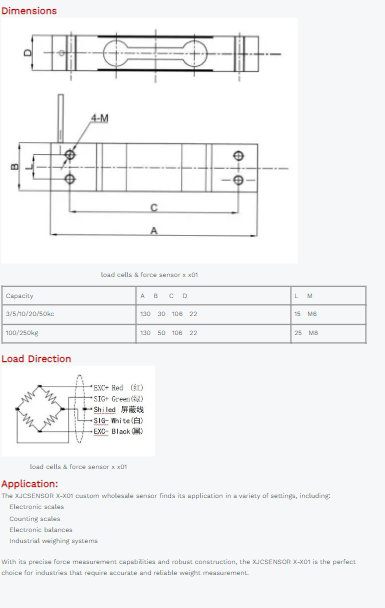

Detail
