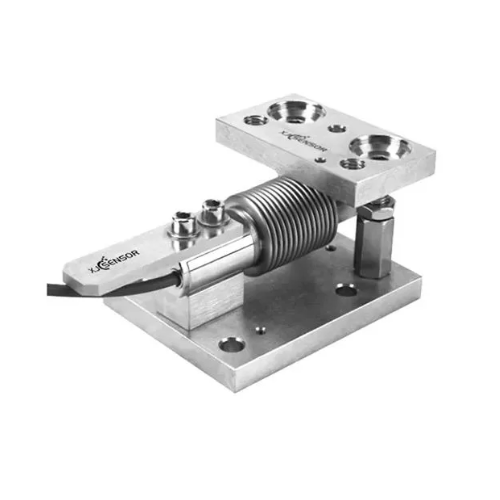

XJCSENSOR X-X001 Weighing Module (500kg)

Capacity: 5kg,10kg,20kg,30kg,40kg,50kg,75kg,100kg,300kg,500kg

Rated output: 2.0±0.2%mV/V

Non-linearity: 0.02%F.S.

Hysteresis: 0.02%F.S.

Repeatability: 0.02%F.S.

Creep(30 min): 0.03%F.S.

Zero balance: ±2%F.S.

Temp effect on zero: 0.03%F.S./10°C

Temp effect on output: 0.03%F.S./10°C

Operating temp range: -20~80°C

Compensated temp range: -10~40°C

Input resistance: 385±30Ω

Output resistance: 350±5Ω

Insulation: ≥5000MΩ/50VDC

Recommended excitation voltage: 5-10V

Limit load: 200%

Breaking load: 300%

Cable size: φ5x4m

Protection class: IP68

Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White
