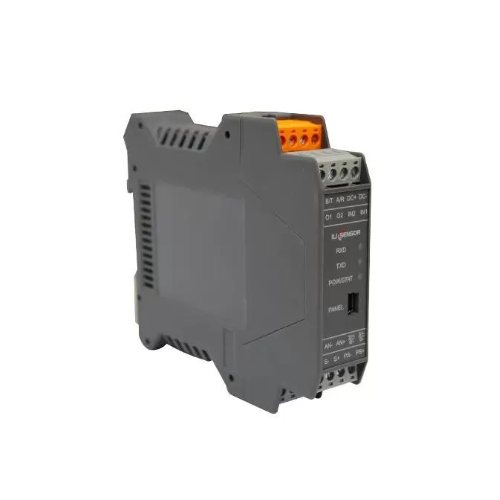

XJCSENSOR X-T20 Digital Module (5VDC)
ManufacturerXJCSENSOR(View more products from this manufacturer)
ModelX-T20
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
External power supply: 5VDC
Material: Plastic
Working Voltage: 24VDC
Input sensitivity: 0.5-3.0mV/V
Non-linearity: 0.1%-0.03%F.S.
Resolution: 1/50000
Hysteresis: 0.1%-0.05%F.S.
Sampling speed: 15-4800Hz (Switchable)
Repeatability: 0.1%-0.05%F.S.
Operating temp range: -10℃ to 50℃, Humidity Below 85% RH
Zero balance: ±2%F.S.
Display accuracy: -199.999-999.999
Power Consumption: about 5W
Communication Interface RS232, RS485, 0-10V, 4-20mA
Cable connection Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White (in)
