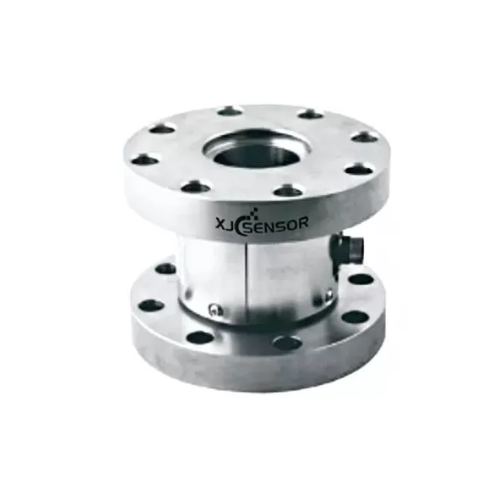

XJCSENSOR X-ST-98B Torque Load Cell (0-500N.m)

Capacity: 0-500N.m

Driving voltage: 12VDC

Zero balance: ±2% F.S.

Rated output: 1.0~2.0 mV/V

Limit load: 120%

Temp effect on zero: ±0.1% F.S./10°C

Response frequency: 100Hz

Compensated temp range: -10~40°C

Material: Alloy steel

Operating temp range: -20~80°C

Combined accuacy: 0.2% F.S.

Insulation: ≥5000MΩ/100VDC

Input impedance: 700±10/350±10Ω

Output impedance: 700±5/350±5Ω

Cable Connection: Ex+: Red；Ex-: Green；Sig+: Yellow；Sig-: White
