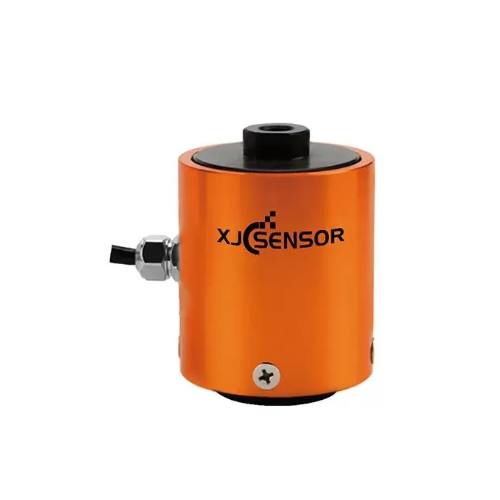

XJCSENSOR X-S07 Single Axis Load Cell
ManufacturerXJCSENSOR(View more products from this manufacturer)
ModelX-S07
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output sensitivity: 1.0±10%mV/V
Repeatability: ≤0.05%F.S.
Non-linearity:
Operating temp range: -20~80°C
Zero balance: ±2%F.S.
Insulation resistance: ≥5000MΩ/100VDC
Compensated temp range: -10~60°C
Limit load: 150%F.S.
Recommended excitation voltage: 5-10VDC
Protection class: IP64
Cable size: φ4x3m
Temp effect on zero: ≤0.05%F.S./10°C
Temp effect on output: ≤0.05%F.S./10°C
Material: Stainless steel / Aluminum alloy
Cable Connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white
