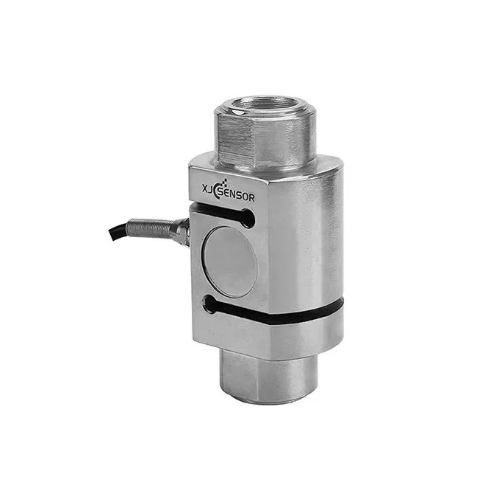

XJCSENSOR X-S06 Tension and Compression Load Cell (0-10T)

Capacity: 0-10T

Material: Stainless steel / Alloy steel

Nonlinearity: 0.05% F.S.

Rated output: 2.0±0.05mV/V

Recommended excitation: 5-12VDC

Maximum excitation: 15VDC

Protect class: IP65

Compensated temp range: -10~40°C

Hysteresis: 0.05% F.S.

Operating temp range: -20~80°C

Repeatability: 0.05% F.S.

Insulation: ≥2000MΩ/100VDC

Input impedance: 380±30Ω

Output impedance: 350±5Ω

Creep(30min): 0.05% F.S.

Temp effect on output: 0.05%F.S./10°C

Zero balance: ±2%F.S.

Temp effect on zero: 0.05%F.S./10°C

Limit load: 150%

Breaking load: 200%

Cable size: Ø5 x3m

Life: Full scale more than 1 million times

Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White

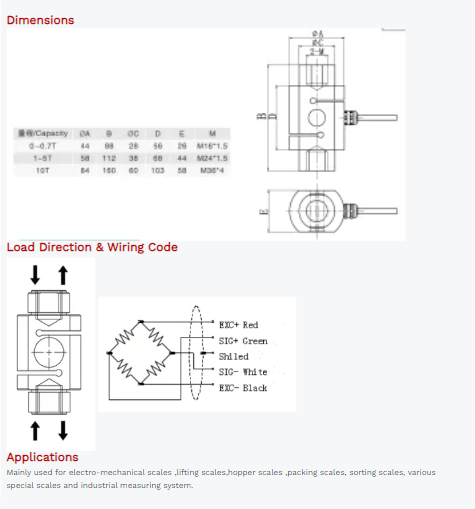

Detail
