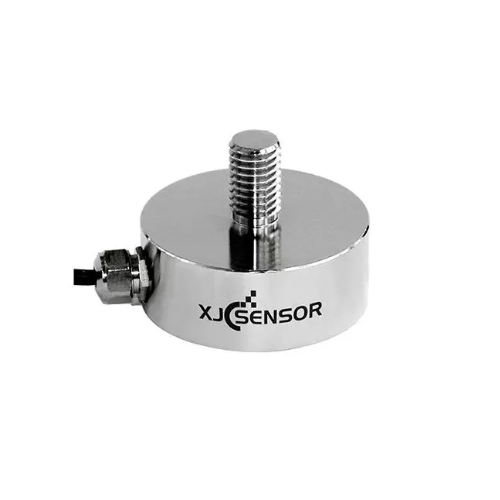

XJCSENSOR X-S05-25 Single Axis Load Cell

Output sensitivity: 1.0-1.5mV/V

Material: Stainless steel

Non-linearity: ≤0.3%F.S.

Repeatability: ≤0.1%F.S.

Zero balance: ±2%F.S.

Operating temp range: -20~80°C

Compensated temp range: -10~60°C

Insulation resistance: ≥5000MΩ/100VDC

Recommended excitation voltage: 5-10VDC

Limit load: 150%F.S.

Cable size: φ3x3m

Protection class: IP64

Temp effect on output: ≤0.1%F.S./10°C

Temp effect on zero: ≤0.1%F.S./10°C

Cable Connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white
