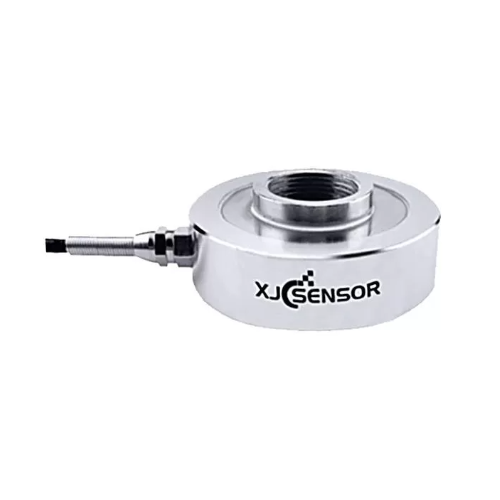

XJCSENSOR X-H80 Compression Load Cell (0-5T)

Capacity: 0-5T

Material: Stainless steel

Nonlinearity: 0.1%F.S.

Rated output: 1.0±10%mV/V

Recommended excitation: 5-10VDC

Maximum excitation: 15VDC

Protect class: IP66

Compensated temp range: -10~40°C

Hysteresis: 0.1%F.S.

Operating temp range: -20~80°C

Repeatability: 0.1%F.S.

Insulation: ≥5000MΩ/100VDC

Input impedance: 750±50Ω

Output impedance: 700±10Ω

Creep(30min): 0.1%F.S.

Temp effect on output: 0.2%F.S./10°C

Zero balance: ±2 %F.S.

Temp effect on zero: 0.2%F.S./10°C

Limit load: 150%

Breaking load: 200%

Cable size: Ø4x4m

Life: Full scale more than 1 million times

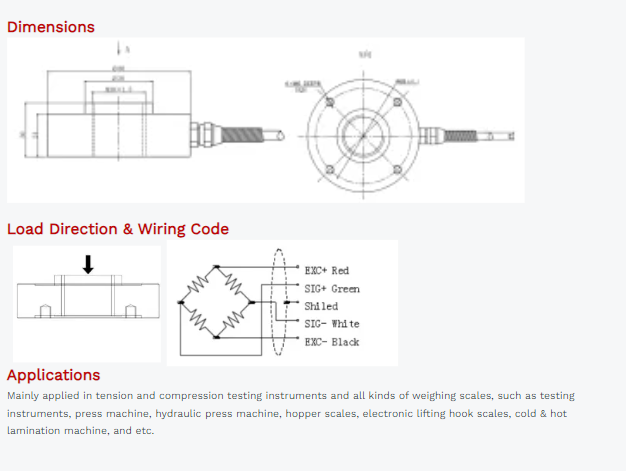

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

Detail
