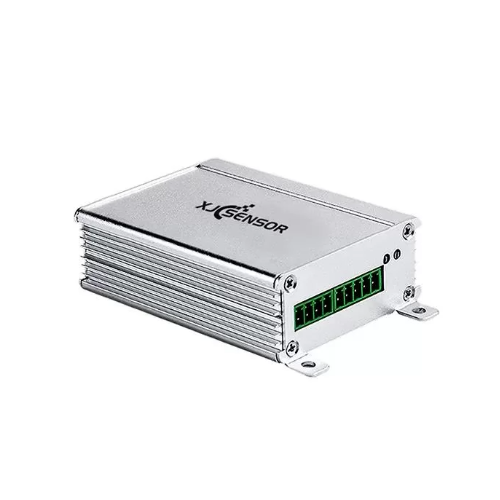

XJCSENSOR X-FA0 Digital Module (36V)
ManufacturerXJCSENSOR(View more products from this manufacturer)
ModelX-FA0
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Accuracy: 0.1%-0.05%F.S.
Rated input: 0-5V,0-10V,-5~+5V or 4-20mA
Power supply: 24VDC
Maximum power supply: 36V
Non-linearity: 0.1%-0.05%F.S.
Compensated temp range: -10 ~60°c
Hysteresis: 0.1%-0.05%F.S.
Operating temp range: -20 ~80°c
Repeatability: 0.1%-0.05%F.S.
Protection class: ≥500OMQ/100VDC
Zero balance: ±2%F.S.
Temp effect on zero: 0.05 % F.S. /10℃
Cable size: Φ5×1.5m
Dynamic Response: 50-200 times/second
Detail
