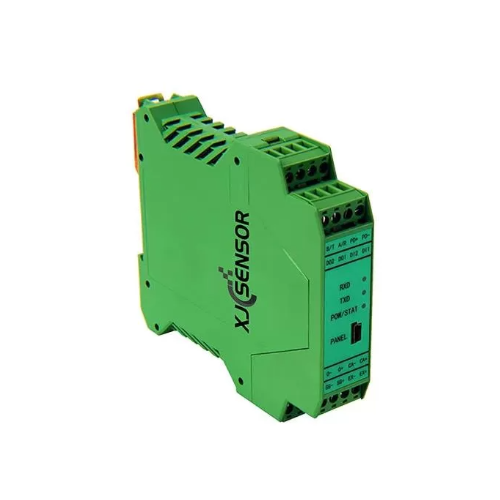

XJCSENSOR X-F61 Control Instrument (5VDC)
ManufacturerXJCSENSOR(View more products from this manufacturer)
ModelX-F61
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
External power supply: 5VDC
Material: Plastic
Power supply: 24VDC
Rated input: 0.5-3.0mV/V
Non-linearity: 0.1%-0.03%F.S.
Resolution: 1/50000
Hysteresis: 0.1%-0.05%F.S.
Sampling speed: 15-4800Hz
Repeatability: 0.1%-0.05%F.S.
Operating temp range: -10℃ to 50℃, Humidity Below 85% RH
Zero balance: ±2%F.S.
Switch I/O type: NPN/PNP
Power Consumption: about 5W
Communication Interface: RS232, RS485,0-10V,4-20mA
