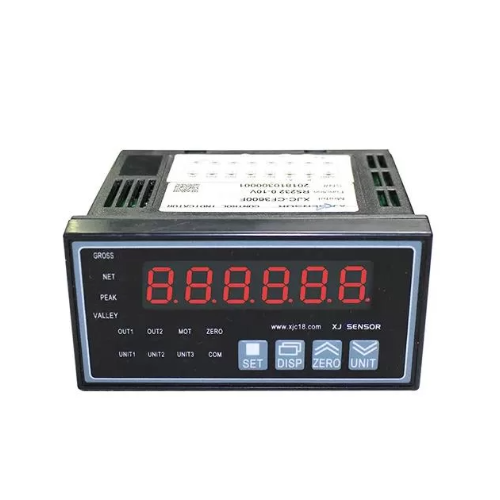

XJCSENSOR X-F30 Control Instrument
ManufacturerXJCSENSOR(View more products from this manufacturer)
ModelX-F30
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Recommended excitation voltage: 220VAC or 24VDC
Material: Plastic housing
Accuracy: 0.03%F.S.
Rated input: 0.5-3.0mV/V
External power supply: 5 VDC
Resolution: 1/50000
Non-linearity: 0.03%
Sampling speed: 15-1920Hz
Hysteresis: 0.03%
Operating temp range: -10℃ to 50℃, Humidity ≤ 85% RH
Repeatability: 0.03%
Display accuracy: 0-50000
Power Consumption: about 5W
Transmit output: RS232, RS485, RS422, 0-10V, 4-20mA
Alarm Output: 2-way alarm output
Multi-function switch: Real-time, peak and valley value
