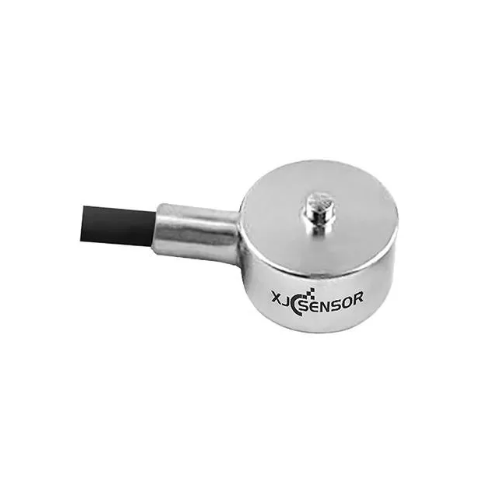

XJCSENSOR X-C01-9.5 Compression Load Cell (0-50 kg)

Capacity: 0-50 Kg

Material: Stainless steel

Nonlinearity: 0.5%F.S.

Rated output: 1.0-1.5mV/V

Recommended excitation: 5VDC

Maximum excitation: 10VDC

Protect class: IP64

Compensated temp range: -10~40°C

Hysteresis: 0.25%F.S.

Operating temp range: -20~80°C

Repeatability: 0.2%F.S.

Insulation: ≥5000MΩ/1000VDC


Input impedance: 350 ± 5Ω (1000±100)

Output impedance: 350 ±5Ω (1000±100)

Creep(30min): 0.1%F.S.

Temp effect on output: 0.2%F.S./10°C

Zero balance: ±2 mV/V

Temp effect on zero: 0.2%F.S./10°C

Limit load: 150%

Breaking load: 200%

Cable size: φ1.6*4m φ2*4m

Life: Full scale more than 1 million times

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

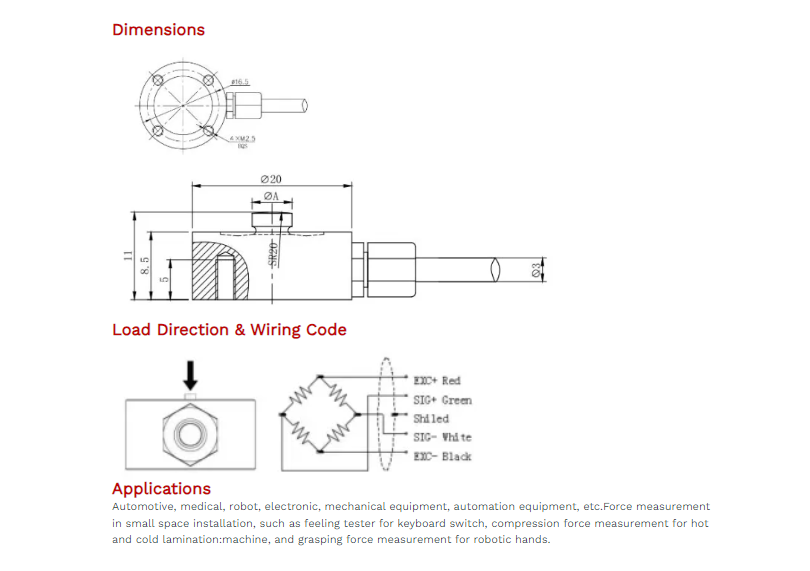

Detail
