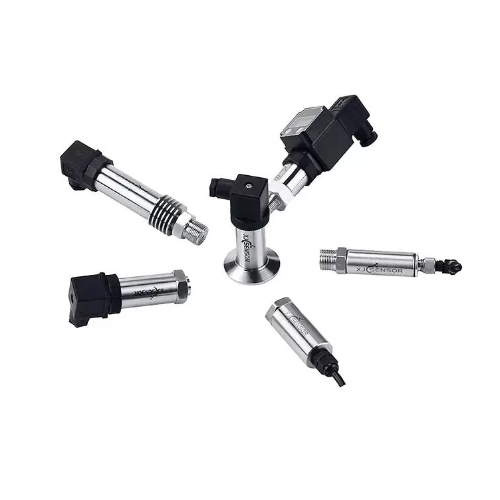

XJCSENSOR X-100T Pressure Sensor / Transmitter (-0.1~200MPa)

Measuring Range (optional): -0.1~200MPa

Operating temp range: -20℃~75℃,≤85%RH

Accuracy: 0.1%FS; 0.25%FS; 0.5%FS

Storage Environment: -40℃~85℃,≤95%RH

Power Supply: Transducer: 5 ~10VDC

Transmitter: 9 ~36VDC

Limit Load: 150%

Output Signal:

+ Transducer: 1.5mV/V, 2mV/V,

+ Transmitter: 4-20mA, 0-20mA, 0-10V ,0-5V

Breaking load: 200%

Zero balance: 0.5%FS

Temp effect on output: 0.03%FS/℃

Full scale error: 1.0% FS

Long Stability: 0.2%FS/year

Compensated temp range: -10℃~60℃

Life: 700±5/350±5Ω

Process connection: M20×1.5, M12x1, M10 x1, 1/4NPT, G1/2, G1/4 or as custom

Detail
