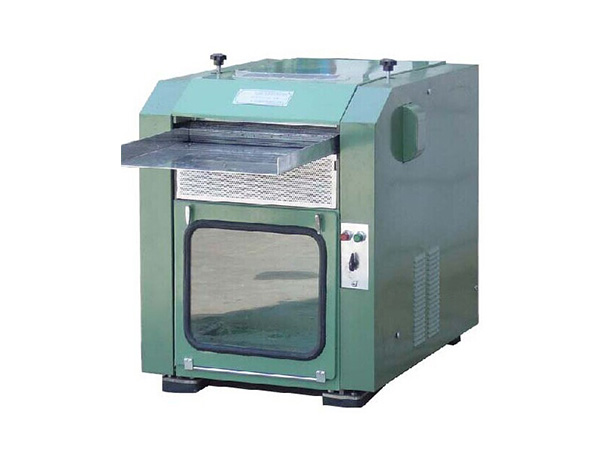

XHinstruments XHX-03 Trash Analyzer

Machine breadth: 490mm

Feeding roller: φ57.15 rotation speed: 0.9r/min

Licker-in: Dia: φ238.76mm, rotation speed: 900r/min

Power Supply: 380V, 50Hz

Dimension: 1019×715×874mm

Weights: 280Kgs

Product Description

Trash Analyzer To determine the percentage content of trash, lint, non-fiber material and cleaned cotton in raw cotton sample up to 100g. Also used to determine non-fiber content of synthetic fibers and to open and clean fiber for further testing. The analyzer uses the carding principle with air separation of lint and non lint content.

Test Standards: ITMF
