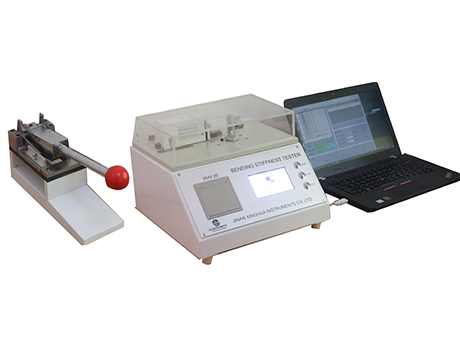

XHinstruments XHV-25-A Paper and Cardboard Stiffness Tester (0-2000 mN)

Test Specimen: Paper

Testing Range: (0-2000)mN; (0-100) mN.m

Resolution: 0.1mN

Indication Error: ±1%

Testing speed: 200°/min and 300°/min

Rated Bend Angle: 0°-90°

Load arm length: (5-50) mm (adjustable)

Dimension: 15 kg

Power: AC 220V±10%,50HZ

Product Description:

XHV-25 Paper and Cardboard Stiffness Tester is used to evaluate the stiffness of paper and cardboard

Test Standards: ISO5628, ISO 2493-1, TAPPIT556.

Product Features:

Adopt high precision load sensor, the error can be controlled within 1%.

Plastic cover can protect measurement head from damage, can preset angle, stainless steel clamp, long time use.

Color touch screen operation system, Aluminum control panel

Check or delete the testing records randomly

Thermal printer, fast and clear printing

Calculate, count and print the testing result automatically

Can be connected to PC and output results with our professional software
