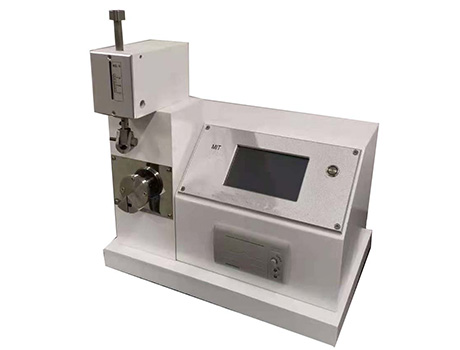

XHinstruments XHV-21 Paper MIT Folding Tester (1-99999 times)

Measuring range: 1-99999 times

Folding angle: 135°±2°

Folding speed: (175±10) times/min

Tension adjust range: 4.9N-14.7N

Folding head specification: 0.50mm, 0.75mm (Standard)

Folding head width: 19±1mm,

Folding radius: R0.38mm±0.02mm

Specimen Dimension: 15mmx150mm

Power: AC220V±10% 50Hz

dimension: 330 mm(L)×250 mm(W)×400 mm(H)

Gross weight: 30kg

Product Description:

XHV-21 Paper Folding Endurance Tester is a new type testing instrument to test Paper’s Folding Endurance, which is designed to be in accordance with related national standard ISO 5626, Paper and board-Determination of folding endurance

Test Standards: ISO 5626

Product Features:

Adopt stepless motor driven, low noise, steady transmission, high precison of folding angle and folding speed.

Attached weights can calibrate spring tension at any time to ensure steady and precision results.

Touch screen operation, automatic complete full test, has statistics function, grip reset automatically.

Thermal printer, fast and clear printing.
