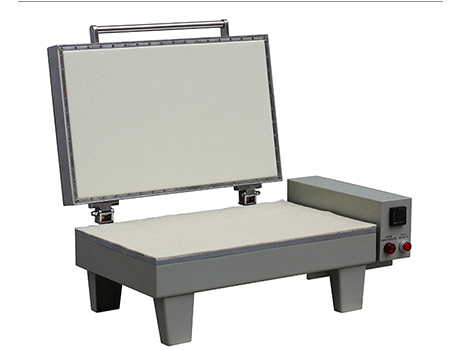

XHinstruments XHV-20 Paper Sheet Dryer (0-15mm)

Sheet thickness: 0-15mm

Drying size: 600mm×350mm

Machine size: 660mm×520mm×320mm

The heating power: 2.5KW/220V

Product Description:

XHV-20 Paper Sheet Dryer is a drying uniformity, smooth surface, long service life dryers to long time heating. It is mainly used for fiber sheet sample drying.

Infrared radiation heating, The drying surface is precision mirror grinding, the upper cover is pressed down vertically, the pattern of uniform stress, uniform heating, shiny. It is a pattern drying equipment for pattern detection data high accuracy requirements

Product Features:

The mirror surface drying,the cover is breathable refractory fibre.

Digital temperature control, long time heating.

The heating element is whole size distribution,  to ensure even drying.
