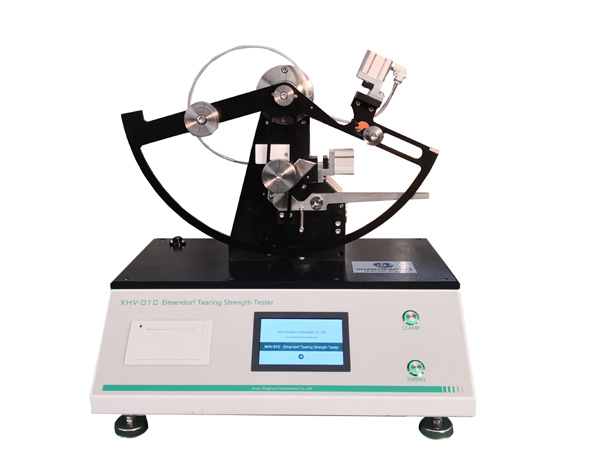

XHinstruments XHV-01C Elmendorf Tearing Strength Tester (64000mN)

Pendulum Capacity: 200gf (2000mN), 400gf (4000mN), 800gf (8000mN), 1600 gf (16000mN), 3200gf (32000mN), 6400gf ((64000mN)

Indication accuracy: ±1%

Resolution: 1mN

Tearing Length: 43±0.5mm

Sample Holder: Pneumatic

Pendulum Release : Pneumatic

Dimension: 470mm×340mm×530mm

N.W.: 30kg

Product Description:

Elmendorf Tearing Strength Tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.

Test Standards: ISO 6383-1, ISO 6383-2, ISO 1974, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414, ASTM D1922

Product Features:

★The instrument is controlled by micro-computer, large LCD display

★The instrument is designed by automatic and electronic measurement which improves the testing accuracy

★Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively

★Computer assisted horizontal adjustment system could maintain the instrument optimum status

★Elmendorf tearing tester equipped with double system operation, micro-computer or computer software control

★Professional software supports multi-unit data output

★Equipped with pendulums of multiple capacities
