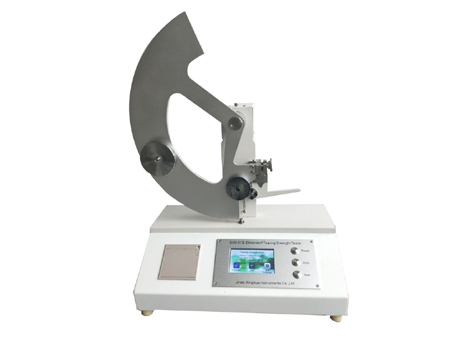

XHinstruments XHV-01B Elmendorf Tearing Strength Tester (10-64000mN)

Testing range: 10-64000mN

Resolution: 0.1mN

Testing accuracy: ±1%

Tearing force arm: 104±1mm

Tearing initial angel: 27.5°±0.5°

Paper clipper distance: 2.8±0.3mm

Specimen cut length: 20±0.5mm

PC Connection: USB, RS 232

Printer: Thermal Printer

Dimension: 450×330×440 mm

Weight: 20 Kgs

Power: 220V, 50Hz

Product Description:

Tearing Tester is applicable in the tearing test of films, sheets, flexible PVC, PVDC, Waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.

Test Standards: ISO6383/2-1983, GB11999-89, ISO1974, TAPPI414, GB455, ASTM D1922

Product Features:

High Accuracy, resolution can reach 0.1mN, ensure testing accuracy is within ±1%, user can use weights to verify the test results.

Release the pendulum bob automatically, high testing efficiency.

Color touch screen operation system.

Check or delete the testing records randomly.

Micro-printer, fast and clear printing.

Calculate, count and print the testing result automatically.

Can be connected to PC and output results with software.

User can calibrate the machine with our equipped weights easily.
