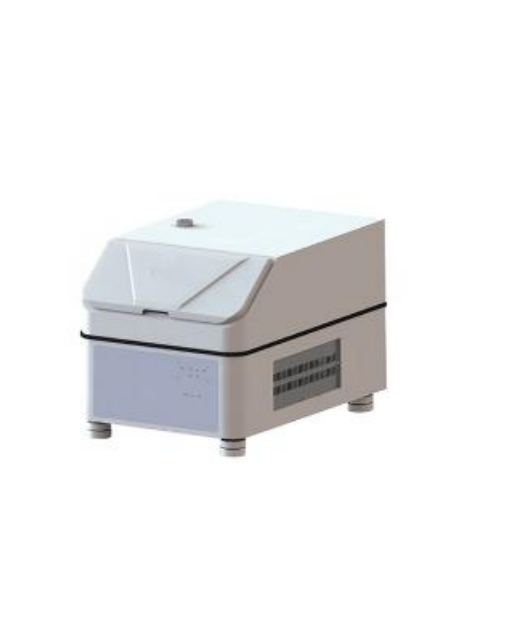

XHinstruments XHS-WVTR-3 Water Vapor Permeability Tester (0.1~10.000 g/m²·24h)

Testing range: 0.1~10,000 g/m2·24h

Accuracy: 0.01 g/m2·24h

Resolution: 0.0001 g

Number of Specimens: 1-3 with independent test results

Temperature range: 15-55°C adjustable

Temperature Accuracy: ±0.1°C

Humidity range: 10%-90% adjustable

Humidity Accuracy: ±1%RH

Air Velocity: 0.5-2.5m/s

Test area: 33cm2

Specimen Size: Φ74 mm

Specimen Thickness: ≤3 mm

Gas supply: Air

Gas Supply Pressure: 0.6 MPa

Port Size: Φ6 mm PU tubing

Instrument Dimension: 660 mm (L) × 480 mm (W) × 525 mm (H)

Weight: 70Kgs

Power Supply: AC 220V 50Hz
