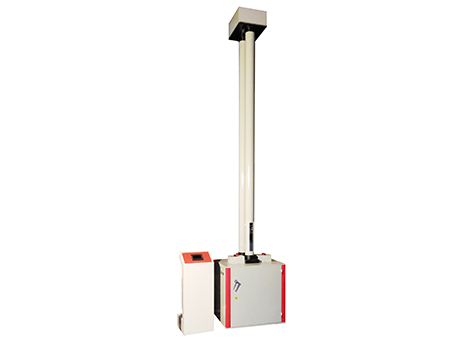

XHinstruments XHS-09 Falling Weight Impact Tester

Structure: Adopts double pipe structure

Max. Falling height: 2000mm

Resolution of displacement: 1mm

Height error: <± 2mm

Hammer mass: 0.25-16kgs

Noses of the Strikers: d25 . d90

Diameter of Test Pipes: 10-400mm or 10-630mm

Power Supply: 220V, 50/60Hz Single Phrase

Outline Size: 830mm×800mm×3800mm

Machine Weight: 550kg

Product Description:

XHS-09 Falling Weight Impact Testing Machine is used for impact test of plastic pipe, sheet metal and products in order to determine Anti-impacts the properties of these materials.

This testing machine adapts PLC control and touch screen operation technology for control part, which can ensure that figure setup, adjusting zero, preset dropping height, raising hammer and dropping hammer automatically, adopting pneumatic technology in preventing secondary impacts, capture rate is 100%.

Test Standards: GB/T 14152, GB/T 10002.1, GB/T 5836.1, GB/T 13664, GB/T 16800,  ISO 4422, ISO 3127, BS EN1411, BS EN744
