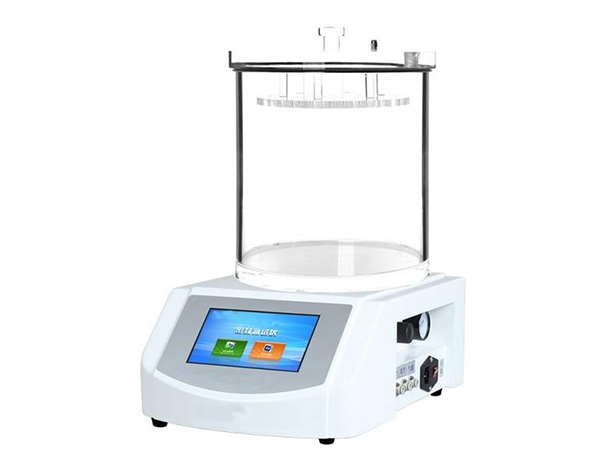

XHinstruments XHS-06 Digital Vacuum Leak Tester (0 - -90 KPa)

Vacuum Degree: 0 - -90 KPa

Accuracy: 0.5% FS

Response Time: <5ms

Resolution: 0.01Kpa

Display: 7 Inch Color Touch Screen

Vacuum Chamber Effective Sizes:

Φ270 mm x 210 mm (H) (standard)

Φ360mm x 585mm (H) (optional)

Φ460 mm x 330 mm (H) ((optional)

Gas Supply Pressure: 0.2-0.7Mpa ((outside of supply scope)

Port Size: 6 mm PU Tubing

Main Frame Dimension: 430(L)×300(B)×165(H)mm

Power Supply: AC 220V/110V, 50Hz/60Hz

Product Description:

XHS-06 Digital Vacuum Leak Tester is professionally designed for the leakage tests of packages for food, drugs, medical instruments, daily chemical products, cars, electronic components, stationeries and other industrial products. The instrument also can be used to test seal performance of specimens after falling and compression tests.

Principle:

Firstly submerge the specimen in the water within the vacuum chamber, and then evacuate the vacuum chamber to form differential pressure between the inside and outside of specimen. The leakage property could be obtained by observing the steady progression of bubbles from the specimen and how the specimen expands and restores to its original shape after vacuum release.

Test Standards: ASTM D3078

Product Features:

Fully test process, one key to finish the test.

Built in high precision sensor, fast response.

Various test model selection to meet different standard requirement.

Preset multi group test parameters under test mode to make fast test.

Double air circuit design to make more accurate test,

Can save and query 500 test results, has statistic function.

High wall thickness of vacuum chamber.

Equipped with pressure adjustable system, easy operation and maintenance
