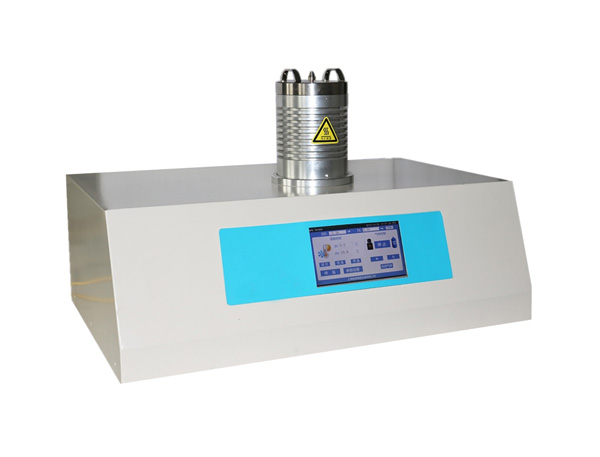

XHinstruments XHS-05T Thermal Gravimetric Analyzer (0.1-80°C/min)

Temperature range: RT-1250°C (-1000°C, 1450°C, 1550°C)

Temperature resolution: 0.01°C

Temperature fluctuations: ± 0.1°C

Heating rate: 0.1-80°C/min

Constant temperature: RT-1250°C

Duration of constant temperature: 0-300min (When more than 1000C, the duration is recommended to be less than 30min)

Temperature control mode: PID temperature control

Balance measurement range: 2g

Weight sensitivity: 0.01mg

Communication methods: USB

Standard crucible size(High * diameter): 10mm* diameter 6mm

Gas control: Nitrogen, Oxygen (automatic switching)

Power: 1000W, AC220V 50Hz

Machine size: 70cm*44cm*42 cm

Machine Weight: 50Kgs

Product Description:

(TGA) is in TG, temperature, the temperature or cooling process, observe the quality with temperature or the change of time, the purpose is to study materia- therma- stability and components. Widely used in plastic, rubber, coating, drugs, catalyst, inorganic materials, meta- materials and composites fields of research and development, optimizing process and quality control.

Measurement and research materia- following characteristics:

Therma- stability, decomposing process, adsorption and desorption, oxidation and reduction, ingredients quantitative analysis, additives and filler influence, moisture and volatiles, reaction kinetics

Test Standards: ISO, ASTM, EN, JIS, GB

Product Features:

Widescreen touch structure of industria- level, it displays abundant information including the set temp, sample temp, oxygen flow, nitrogen flow, Thermo gravimetric signal, a variety of switching states, and flow to zero.

- Use the gigabit network line communication interface, the universality is strong, the communication is reliable without interruption, supports the self-recovery connection function.

- The furnace body with compact structure can make temp adjusted at any rate.

- Water bath and heat insulation system, insulation high temperature furnace body temperature on the weight of the balance.

- Improved installation process, al- adopt mechanica- fixation; The sample support rod can be replaced flexibly and crucible can be matched with various models according to the requirements, so that users can have different requirements.

- Flow meter can automatically switch two gases’ flow rate with fast switching speed and short stabilization time.

- Standard samples and charts are provided to facilitate customer calibration of constant temperature coefficient.

- Software support each resolution screen, automatically adjust the computer screen size curve display mode. Support laptop, desktop; Support Win2000, XP, VISTA, WIN7, WIN8, WIN10 and other operating systems.

- Software support each resolution screen, automatically adjust the computer screen size curve display mode. Support laptop, desktop; Support Win2000, XP, VISTA, WIN7, WIN8, WIN10 and other operating systems.

- One-piece fixed furnace body structure, without lifting up and down, convenient and safe, the rate of rising and falling can be adjusted arbitrarily.

- The removable sample holder can meet different requirements after replacement to facilitate cleaning and maintenance after sample contamination.

- The equipment adopts cup-type balance weighing system according to the principle of electromagnetic balance.
