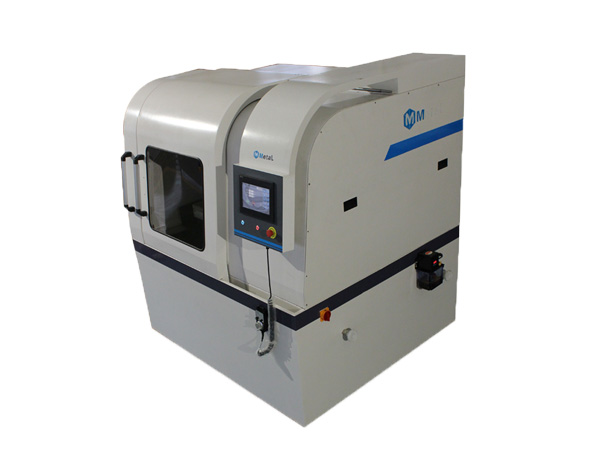

XHinstruments XHL-23 Metallographic Cutting Machine (0-2600r/min)

Input voltage: 380V 50HZ

Spindle speed: 0-2600r/min

Cutting: Manual/Automatic

Cutting capacity(Max): Φ170mm

Max Table Moving Distance: X: 150mm Y: 750mm Z: 290mm

Cut-off wheel: Φ500×4×32mm

Cutting motor: 7.5kw

Table Dimension: 600mm×800mm

Dimension: 1850×1650×1900mm

Weight: 2500Kgs

Automatic metallographic sample cutting machine is a large automatic cutting machine, using PLC with a very high reliability, strong control ability; in human-computer interaction using a touch screen; the control adopts high precision stepper motor; it is suitable for cutting various metal specimens. Metal materials, in order to observe the metallographic, petrographic tissue. The machine cutting process automation with low noise,simple operation, safe and reliable, is one of the important equipment in modern laboratory production of solid material samples.
