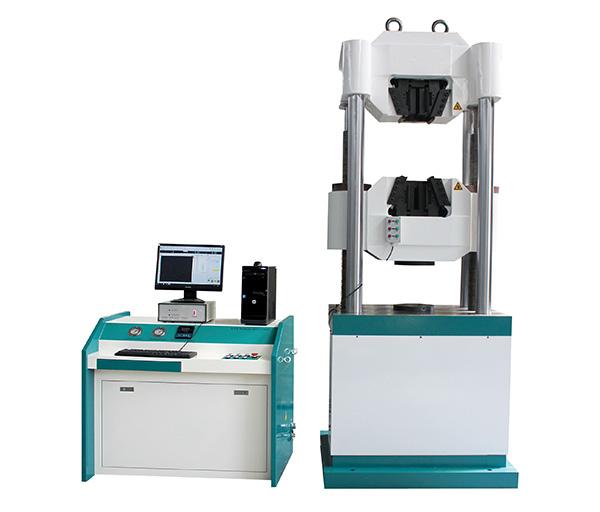

XHinstruments XHL-05B-200 Computer Control Hydraulic Universal Testing Machine (2000KN)

Capacity: 2000KN

Frame Type: Chain, 6 Columns

Force Test Range: 2%-100% F.S (1%-100% F.S)

Force Test Accuracy: Better than +/-1% (+/-0.5%) of indication value

Strength Resolution: ±1/500000

Deformation Test Range: 0.2%-100% F.S

Deformation Error: Better than +/-0.5% of indication value

Displacement Resolution: 0.001mm

Control Method: Constant Speed/ Constant Load/ Constant Displacement Control

Max Ram Stroke Speed: 100mm/min

Tension Space: 700mm

Compression Space: 600mm

Grip for Sample Thickness: 0-50mm

Grip for Sample Diameter: ⌀15-70mm

Compress Grip Size: 204x204mm

Piston Stroke: 200mm

Clamping Method: Hydraulic

Dimension:

Main Frame(mm):
1160x970x2650

Oil Cabinet(mm): 1200x760x950

Weight: 7000kg

Product Description:

XHL-05 computer control hydraulic universal testing machine are widely used for tension, compression, bending and shearing test of metal materials.

It conform to ISO 7500/1 Class1, ASTM E4, BS 1610 Grade 1, DIN 51221 Class1.

Test Standards: ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.

Product Features:

Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control

Load accuracy of +/-1% down to 2% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.

Built-in of test methods meeting international test standards.

Pre-load test standards for ASTM standard and ISO standard for foam test

All test procedure is carried out easily with our professional software

Test automation and batch testing

Test creation is provided by software

Multi points load is calibrated to ensure calibration is accurate

History track function easy to track previous test results according to date, name..etc

Adopt high precision hydraulic load cell to keep measurement more accurate and stable.

Automatically detection of the adjustment and calibration by electronic system and software.

Real-time processing digital signal, Integrated dual routes precision instrument programmable amplifier, digital zero, Load, extension, and cylinder ram stroke three sensor input channel

High stiffness structure which can endure steady during the testing.

With the protective function of overload, over current, over voltage.

Test results can be directly output, or via bmp, excel, txt...etc

PC interface is via USB allowing standard laptops to be used with no special PC interface cards required, also can use RS 485, Wifi.

With accuracy and perfect data analysis function, utilizing man-machine interactive mode to analyze and calculate mechanical performance of materials, and automatically calculate max force, elongation, tensile strength, elasticity modulus, yield strength, non-proportional extension stress, Rp0.2(бp0.2),Rsl(бsl))、Rm(бb), R p0.05(бp0.05) and E, etc, also with analysis process with man intervention, thus improve accuracy.

User Italian Marzocchi Crescent Oil Pump
