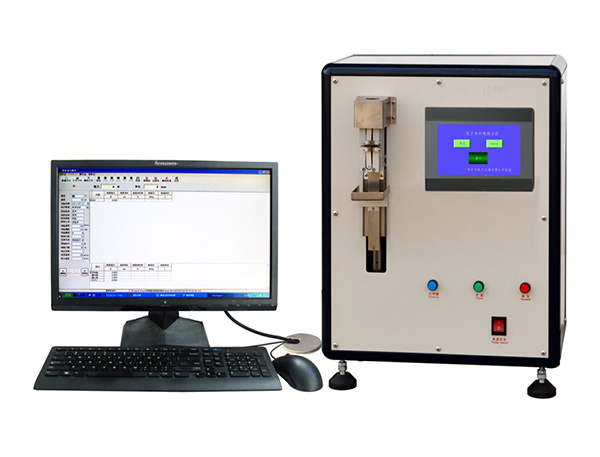

XHinstruments XHL-02FE Fiber Strength Tester (0-500cN)

Range: 0-500cN

Force measurement accuracy: <±0.5%

Gauge length: 5-60mm (random setting

Max Stoke: 120mm (when gauge length 10mm)

Extension measurement error: ≤0.05mm

Test speed: 3-200mm/min

Pretension setting range: 0.00cN-99.99cN

Pretension resolution: 0.01CN

Working pressure: 0.4-0.6Mpa

Dimension: 400mm×290mm×460mm

Net weight: 25Kgs

Power supply: AC 220V±10% 50Hz

Product Description: The Fiber Strength Tester is suitable to test the tension of chemical fiber cotton, wool, ramie,silk, glass fiber...etc.

Test Standards:  ISO 11566, ISO 5709, JIS K1474, JIS R7601, JIS K1477, ASTM D3822, BS 4029, BS 3411

Product Features:

Touch screen control and computer control, real time display testing results, print results directly via printer or generate word, excel detail report via PC.

Select imported load cell from USA, CRE test principle, high speed sampling.

It can real time display curve, tensile strength, break tenacity, elongation, yield force, yield elongation, modulus, various CV value...etc.

High accuracy, fats response.

Pneumatic gripper can clamp sample without any damage and slippage.

8 test function built in the program
