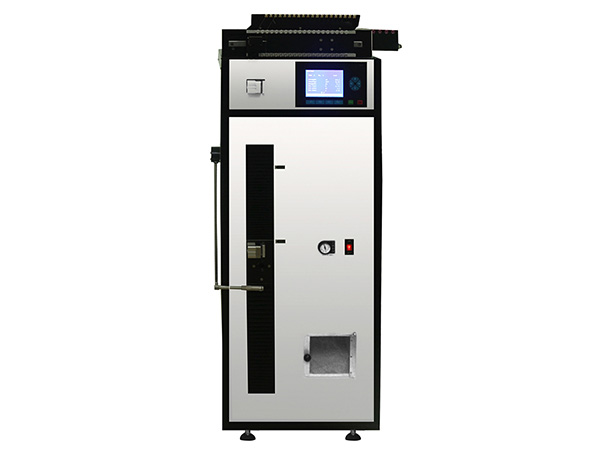

XHinstruments XHL-02F Fully Automatic Yarn Strength Tester (6000CN)

Max Measurement Force: 6000CN

Linear Deviation: 0.0005

Load Cell Accuracy Class: 0.0005

Gauge Length: 250mm±1mm,500mm±1mm

Pretension: 1cN-100cN

Elongation: when at 250mm gauge length, max elongation is 220%; when at 500mm gauge length, max elongation is 60%

Accuracy: Within ±1% of applied force

Tensile Speed: 50mm/min-5000mm/min

Tex: 1-999.9 random setting

Working Pressure: 0.4Mpa-0.8Mpa

Power: AC110/220V 50/60Hz

Dimension: 1295mm×550mm×450mm

Weight: 140kg

Product Description

XHL-02F Fully automatic yarn tensile strength tester is used to determine the breaking load and elongation of single yarns, core-spun yarn, polyester filament etc.

Test Standards: ISO 2062, ATSM D2256, BS 1932, DIN 53842.1, DIN 53835.2...etc.

Product Features:

1. Working pattern: CRE principle, controlled by both computer and LCD display, professional software supports.

2. Large LCD can record, browse detail results and print results by printer

3. Fully programmable to give breaking load, elongation, CV% of load, elongation, stress, strain curve and tenacity values..etc.

4. Time fixing tensile: 10s or 20s

5. With memory function when power interrupt, and up to 999 tests on each sample:

6. The machine adopts contactless relay, stable performance, reliable

7. Gauge length and tension speed pre-settable

8. Able to set pretension force

9. Dual control, can use computer control, also can use large panel controller control without PC, for PC, output report as BMP, WORD, EXCEL ..etc directly.

10. Use American Celtron load cell and Servo motor, low friction ball bearing screw

11. Automatic sample loading from the cops as program.

12. Automatic zero-setting after each test.

13. Pneumatic Gripping, the clamp force can be adjusted, no destroy the yarn.

14. Creel for robbions, can test 20 pcs cops at the same time.

15. Force and elongation can be measured at any point of the curve

16. Force reading can be selected either in Newton, gram, CN or LB

17. Elongation reading can be selected either in or mm

18. Have waste box.

19. Yarn winding will not occur because of professional lower gripper design.
