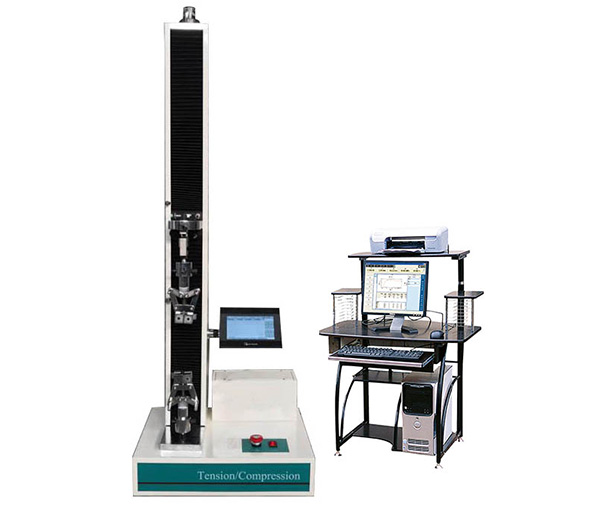

XHinstruments XHL-02 Computerized Electric Tensile Strength Tester (5000N)

Load Cell: 100N, 200N, 50N, 100N, 200N, 500N, 1000N, 2000N, 5000N

Accuracy: +/-0.5% of Indication Value

Strength Resolution: 1/500000

Drive System: AC Servo

Unit Switch: Kg, N, KN, LB, mm, Inch

Travel distance: 700mm (other travel distance according to requirement)

Extension resolution: Min 0.001mm

Speed: 0.01mm-500mm/min (adjustable)

Speed Accuracy: +/-1%(0.01-10mm/min); +/-0.5%(1-500mm/min)

Data acquisition rate: Max 1000Hz

Position Measurement: Omron Encoder

Software: Included with analysis and results output software

Tension Grips: According to to different material

Compression Plate: Diameter: 100mm

Power: 220V, 50Hz, Single Phrase

Dimension: 520×380×1600mm

Weight: 110Kgs

Product Description

Electric Tensile Strength Tester is professionally applicable to measurement of tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force, pulling force and low speed unwrapping force as well as other properties of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tapes, label stickers, medical plasters, release paper, protective films, combined caps, aluminum foils, diaphragms, back sheets, non-woven fabrics, rubber and paper, etc.

Test Standards

ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.

Product Features

1. Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control

2. Modern linear guide technology, pre-loaded ball screws and advanced software.

3. No special computer required, controller is embeded in the host machine

4. Load accuracy of +/-0.5% down to 0.4% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.

5. Built-in of test methods meeting international test standards.

6. Pre-load test standards for ASTM standard and ISO standard for foam test

7. All test procedure is carried out easily with our professional software

8. Test automation and batch testing

9. Test creation is provided by software

10. Multi points load is calibrated to ensure calibration is accurate

11. History track function easy to track previous test results according to date, name..etc

11. Adopt stable and reliable servo driving system and servo motor, the adjustable rate can up to 1:100000

12. Adopt high precision load cell to keep measurement more accurate and stable.

13. Automatically detection of the adjustment and calibration by electronic system and software.

13. Data acquisition system consists of or channels high precision A/D conversion channel. The maximum resolution of 1/50000

14. High stiffness structure to 5KN

14. With the protective function of overload, over current, over voltage, displacement upper and lower limitation and emergency stop

15. Test results can be directly output, or via bmp, excel, txt...etc

16. Dual Control, Touch Screen Operation and PC Operation

18. Cables Connection is very simple
