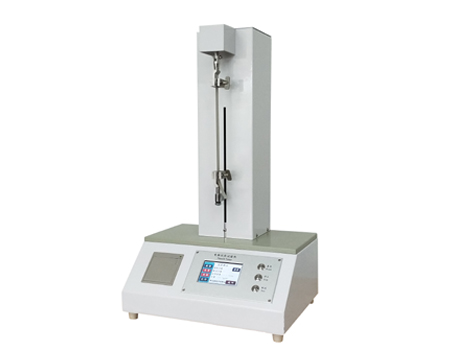

XHinstruments XHL-01P Paper Tensile Strength Tester (0-30N, 0-300N)

Test Range: 0-30N, 0-300N

Resolution: 0.01N

Accuracy of testing force measurement: Better than 1%

Max Jaw separation: 215mm

Resolution of elongation: 0.1mm

Accuracy of elongation measurement: 0.2mm

Clamping width: 15mm

Test Speed: 1-600 mm/min (adjustable)

Dimension: 400×230×600mm

Weight: 30kg

Power Supply: AC110V/220V, 50Hz/60Hz

Product Description:

The XHL-01P Paper Tensile Strength Tester is special in testing tissue. It's used to test the tensile force, tensile strength, tensile index, elongation, stretch at break,fracture length, tensile energy absorption, tensile energy absorption index....etc.

Test Standards: ISO 1924/2, ISO 12625-4

Product Features:

1. Adopt high quality stepper motor, low noise, control precisely.

2. Large color touch screen  english menu display, easy and quick operation.

3. Get the result directly including average, standard deviation, coefficient of variation

4.High automation with the advanced parts,has the function of testing message  processing data and motion control,besides it can reset automatically , remember data, and protect and diagnose error

5. Equipped with RS232 interface and can connect with computer.

6. After connect with computer, has multi units selection, kg, N, lb, also show detail test curves.

7. Preset gauge length and test speed, make test high efficient.

8. Calibration process is easy.

9. Load cell safety: Overload protection.
