XHinstruments XHF-JY Laboratory Jig Dyeing Machine (φ160-φ180mm)

Fabric roller: φ160-φ180mm

Center distance between two rollers: 350-400mm

Degree of ex-pander peach shape roll: 15-25mm

Dye tank:cloth roller: φ125mm,solution 40L/m

Speed of fabrics: 0-50m/min ,with infinitely variable speeds

Transmission Model: two AC motors ,Reduction helical gear box

Running speed: 0-50m/min ,tension range: 0-80kg

Installed capacity: 3-6kg

Material: Stainless Steel

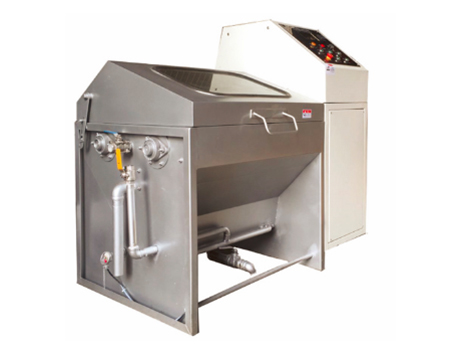

Product Description

Laboratory Jig Dyeing Machine is special designed for lab normal temperature jig dyeing. It's applicable to retreatment, bleaching and dyeing of cotton, flax, chemical fiber blending and nylon interweaving. This jig dyeing machine is an ideal solution to cut down the waste of time and invest due to bad dyeing technology. It's also helping you to develop new dyeing formula.
