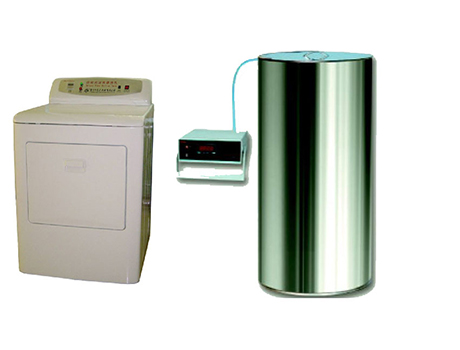

XHinstruments XHF-ET-02 Electrostatic Tester

Measurement range: +/-0.001µC-2µC（+/-1×10^-9-+/-2×10^-6C)

Accuracy: +/-0.5％ of indication value

Dimension of faraday bucket: inner bucket: diameter 400mm; diameter 500mm, height:1000mm

Drum Friction Machine:

Drum inner diameter: 65cm

Drum depth: 50cm

Drum rotation speed: 46r/min

FrIction time range: 0-99.99min (random set)

Dimension: 700mm×720mm×1100mm

Product Description: Electrostatic Tester: Sample fabrics which is abraded with standard fabric and then place in faraday bucket and determine the Surface charge density.

Test Standards: FZ/T01060,GB/T12703, GB12014, JIST8118
