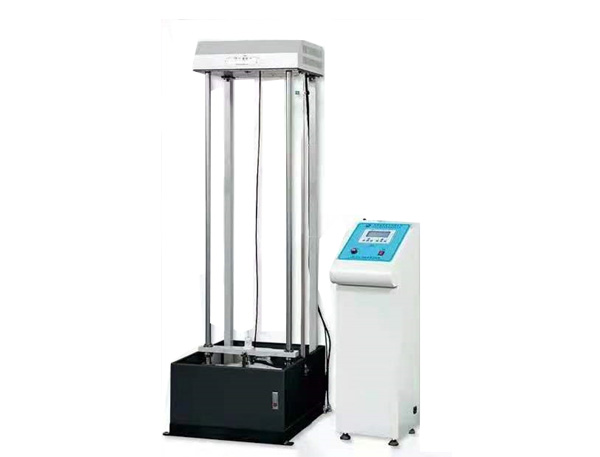

XHinstruments XHF-91 Safety Shoe Impact Resistance Tester

Drop height range: 0-1200mm

Impact Striker : 20±0.2 kg (ISO), 22.7±0.23kg (ASTM)

Impact mode: Free Falling

Release mode: Electromagnetic release

Anti-secondary impact: Double buffer cylinder

Secondary induction switch: Photoelectric Switch

Power Supply: AC 220V, 50Hz

Dimension: 690mmx650mmx1880mm

Weight: 210Kgs

Product Description:

The Satety Shoe Impact Tester is falling off from the setting height, with certain energy impact safety shoes or protective shoes toe one time, after impact, by measuring the minimum height value of clay cylinder which is pre-placed in safety shoes or protective shoes toe, and its size and whether the protective part is cracked to assess safety shoes or protective shoes toe antisquashy.

Test Standards: ANSI-Z41,BS EN-344, ISO 22568-1, CSA-Z195, LD-50, EN ISO 20344:2004, ASTM F2412-11,EN12568-2010,CNS 6863-82, GB 4014-1983, JIS-T8101:2000

Product Features:

1.Equip with protection fence, to avoid hazardous objects splash

2. Control box separate with impactor, to protect personnel security.

3. Equip with electromagnet absorption device and automatically grab impact head to set height

4. One-button automatic test, easy to operate.

5.Imported high-precision bearings, low friction and high precision.

6.Support double-cylinder to prevent secondary impact, achieve zero error.
