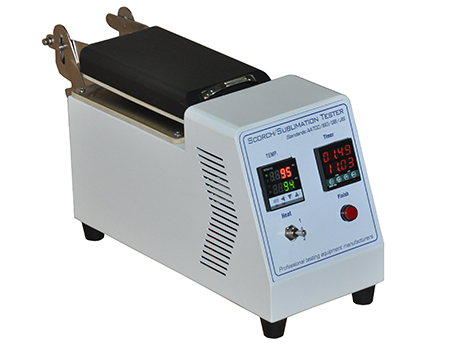

XHinstruments XHF-58 Sublimation Fastness Tester

Test stations: 1 or 3 or 5

Upper and lower heating plate dimension: 102mmx29mm

Heating Method:

1) One Side heating

2) Dual sides heating

Test Temperature: Room temperature-300°C (Adjustable)

Specimen dimension: 100mmx40mm

Timer range: 0-9999 s ( Light indication when reach test time)

Temperature controller: Set temperature, Auto constant temperature control

Test pressure: 4±1KPa

Dimension: 300mmx415mmx270mm

Weight: 17kgs

Power supply: AC220V±10%, 50Hz

Product Description: Sublimation Fastness Tester is used to determine color fastness to hot pressing and dry heat and to conduct sublimation tests. Providing controlled conditions of dry heat and pressure with top and bottom heated surfaces, electronic temperature controller and carefully controlled top plate weight.

Test Standards: GB/T 5718, GB/T6152, M&S C13, ISO 105-P01, X11 BS1006, AATCC 92 114 117 133, DIN 54022/54060
