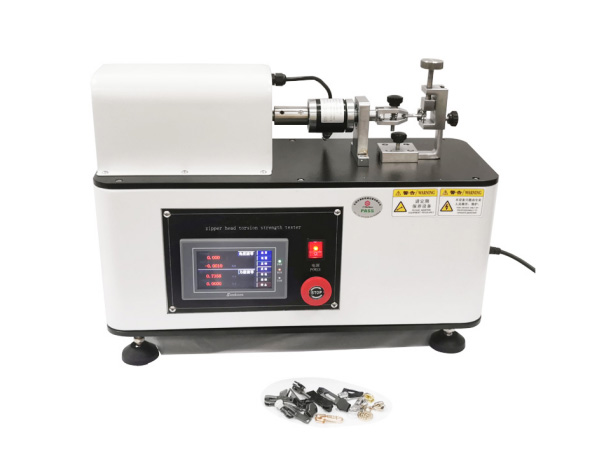

XHinstruments XHF-55B Zipper Torsion Tester (0-10N.m)

Torque Range: 0-10N.m

Torque Accuracy: 0.25%F.S

Testing Speed: 0-800°/min (Can be set)

Angle Measurement Range: 0-180°

Control: Manual/Automatic

Direction: Clockwise/Anti-Clockwise (Selectable)

Dimension: 520×200×390mm

Weight: 32Kgs

Power Supply: 220V, 50Hz

Product Description: Zipper Torsion Testing Machine is To test the torsional force of variety types of zipper pullers.

Test Standards: EN 16732, ASTM D2061

Product Features

1. Use the touch screen control is easy to operate with straightforward interface.

2. Horizontal Structure.

3. Adopt low-noise reducer and servo system which can run smoothly and less noise.

4. PLC Control, automatic measurement, automatic calculate testing results

5. Micro printer can print related test results
