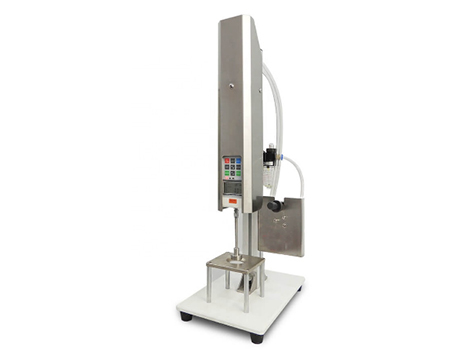

XHinstruments XHF-42B Fabric Stiffness Tester

Specimen: 102x204mm

Capacity: 500N, 50 KGS, 100LB

Test Platform: 102x102mm, Centre diameter 38.1mm (1.5’’)

Load Head: diameter 25.4mm(1’’)

Travel: 57mm (2.25’’)

Load method: Pneumatic load

Load speed:: 1.7+/-0.3s / 57mm

Load pressure: 324Kpa(47Psi)

Dimension: 300mmx300mmx480mm

Weight: 15Kgs

Pneumatic Fabric Stiffness Tester determines fabric stiffness using the ASTM circular bend test method A plunger of 25.4 (1 in) diameter pushes the fabric though a 38mm (1.5in) diameter orifice for a distance of 57mm (2.25in) in 1.7 seconds and the maximum.
