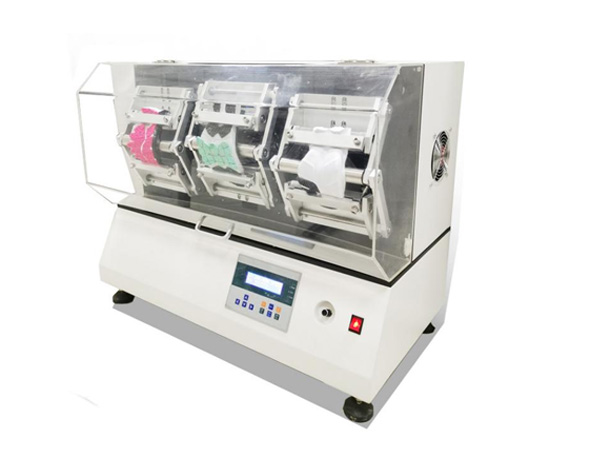

XHinstruments XHF-38 EN Whole Sole Flexing Testing Machine

Test Stations: 3

Bending angle: (90±2)º

Bending speed: 5-150 cpm (adjustable)

Diameter of mandrel: 30mm

Width of clamp: 144mm

Dimensions: 860mmx460mmx800mm

Weight: 118kgs

Power Supply: AC 220V, 50Hz/60Hz

Product Description:

This  Whole Sole Flexing Testing Machine is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and affix specimen at both, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, discharge specimen and inspect how the specimen breaks.

Test Standards: ISO 17707, SATRA TM 161, EN 344, ISO 20344, DIN 53543

Product Features:

LED-SLD806 integrated display control box, menu operation mode

The position can be adjusted by jog, and the test speed can be adjusted

Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials

Precision drive motor, stable operation and low noise

With counting and timing auto-stop function, the test can be automatically stopped by setting the test value

High-precision bearings are used for smooth and stable rotation and long active life

New vertical structure design, convenient sample installation

3 samples can be tested at the same time

Protective door can protect the hands of the operator, automatic stop when door opened
