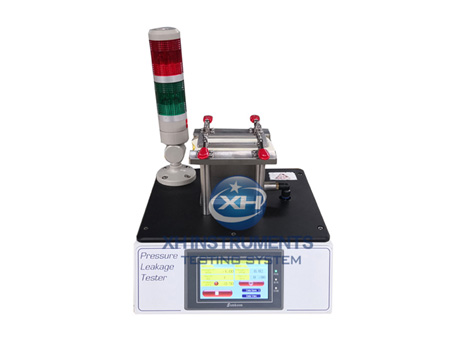

XHinstruments XHF-116 Protective Clothing Leakage Tester

Test Station: 1 Station

Test Pressure: -1KPa

Test Time: 1min

Timing: 0~99min59s adjustable

Specimen Size: 50mm×105mm

Specimen Quantity: 3

Dimension (WxDxH): 30×30×30cm

Weight (Kg): ≈12Kg

Power Supply: 1∮ AC 220V 60Hz 2A

Product Description:

Protective Clothing Leakage Tester

Samples of chemical protective clothing materials that have either been abraded or flexed are placed on a fixture and are then subjected to a reduced pressure. The resulting pressure is then measured. A comparison is made for the ending pressure between abraded or flexed and pristine samples.

Test Standards: ISO 16602 Annex G
