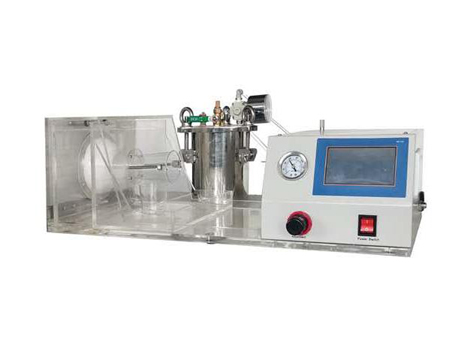

XHinstruments XHF-110 Medical Masks Synthetic Blood Penetration Tester

Spray Distance: 300mm±10mm

Spray Speed: 450cm/s,550 cm/s,635 cm/s

Nozzle: Diameter: 0.8mm, Length: 12.7mm

Spray time: 0.01s-99.99s

Synthetic blood volume: 2L

Power Supply: AC 220V 50Hz

Product Description:

Medical masks synthetic blood penetration tester is used to determine the resistance of medical protective masks to penetration by synthetic blood at different test pressures,and can also be used to determine the resistance to blood penetration of other coating materials.

Test Standards: ASTM F1862/F 1862M, ISO 22609

Product Features

1.  The convex sample fixing device can simulate the actual state of use of a mask, leave a test target area without damaging the sample, and distribute the synthetic blood in the target area of the sample.

2.  The special constant pressure spray device can spray a certain volume of synthetic blood in a controlled time. 3. It can fully simulate the human body's average blood pressure of 10.6kPa, 16kPa, and 21.3kPa spray speeds for testing.

3.  Equipped with a target plate, which can block the high-pressure edge portion of the sprayed liquid flow, and only let the steady-state flow portion be sprayed on the sample, which increases the accuracy and repeatability of the liquid velocity sprayed on the sample.

4. Color touch screen operation.

5. Equip with thermal printer for printing results.
