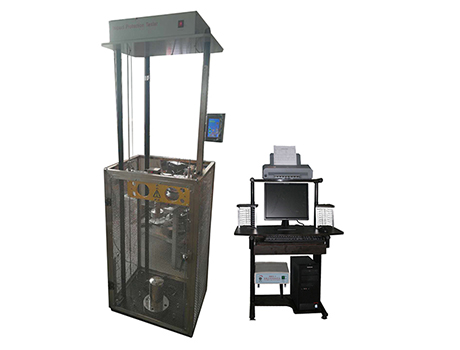

XHinstruments XHF-106 Impact Protection Tester

For Protective Clothing:

Force measurement: 0-60000N

Frequency response range: 5-1000Hz

Lift device: Motorized system, have upper and lower limit

Dimension: 650mm×770mm×2200mm

Power Supply: AC 220V+/-10%, 50Hz

EN 1621-1:

Mass of striker: 5000+/-10g

Flat Striking Surface: 40mmx80mm

Round Edges of Striker: 5+/-0.5mm Radius

Impact energy: 50J+/-2J

Anvil Radius: 50mm

Total Height of Anvil: 180+/-20mm

EN 1621-2:

Bar Impactor Length: 160+/-2mm

Bar Impactor Width: 50+/-1mm

Bar Impactor Cylindrical Face Radius: 12.5+/-0.1mm

Mass of impactor and guided mass: 5000g+/-50g

Impact Energy: 50+/-1.5J

Anvil Height: 190+/-20mm

For Protective Gloves:

Mass of striker: 2.5kg

Impact energy: 5J

Flat face of striker: 80mm

Force measurement: Force measurement

Lift device: Motorized system, have upper and lower limit

Dimension: 650mm×770mm×2200mm

Power Supply: AC 220V+/-10%, 50Hz

Product Description:

Impact Protection Gloves :For gloves that are designed, constructed and claimed to provide specific impact attenuation, the materials shall not crack when a 2.5kg load with an impact energy of 5J drops on the tested material- peak transmitted shall also be <7 KN.

It is used for protective clothing impact test.

Adopt high precision piezoelectric ceramic force sensor, high resolution, fast reaction, good repeability, the machine controlled by computer, all test process is through computer controlled, automatic record impact force, automatic calculate average impact force, testing report also be available.

Test Standards: Standard:  For Protective Clothing: EN 1621-1, EN 1621-2  For Protective Gloves: EN 13594, EN 388
