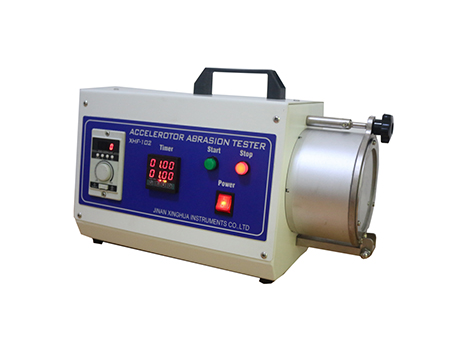

XHinstruments XHF-102 AATCC Accelerotor (100-3500r/min)

Testing Speed: 100-3500r/min

Rotor: S- Shape, Length : 114mm

Time Counting Range: LED Display 0.1s-99 H

Size of Test Chamber: Diameter: 140mm, Depth: 70mm

Dimension: 465× 204 × 306mm

Weight: 20Kgs

Power Supply: 110V, 60Hz, Single Phrase

Product Description

AATCC Accelerotor is used to rapidly determine wet and dry abrasion resistance of flexible materials including textiles, paper, leather and plastics. The tumbling action is provided by a propeller shaped rotor for a predetermined time at a predetermined speed.

Test Standards: AATCC 93

Product Features:

Transparent protective window door design, knob fastening, reliable protection of personnel safety and more convenient observation of test conditions.

The rotor is made of SUS304, laser-formed, durable, easy to clean and more precise size.

Removable rotor for easy replacement of other size rotor to meet different standard requirements..

LED Speed Controller, real time display test speed, know adjust speed accurately, automatic stop when reach preset testing time.

LED Light is equipped in the test chamber to observe the sample test state.
