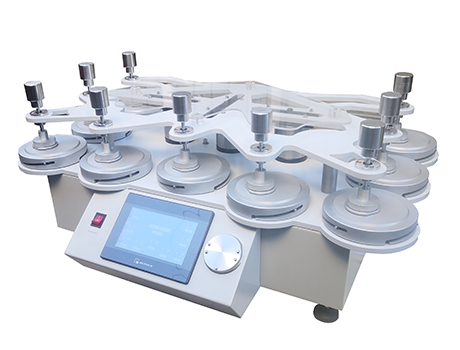

XHinstruments XHF-05 Martindale Abrasion and Pilling Tester

Work-Station numbers: 6, 8 or 9

Counter display: Preset counter display: 0-999999, Cumulative counter display: 0-999999

Speed: 47.5+/-2.5 rpm (25rpm, 75rpm optional)

Abrading table diameter: φ120mm

Abrasion test:

A: cloth specimen clamp: 198g+/-2g

B: textile specimen hammer: 395g+/-2g (Equal to 9Kpa)

C: furniture deck specimen hammer: 594g+/-2g (Equal to 12Kpa)

Pilling Test:

A: cloth specimen clamp: 155g+/-1g

B: textile specimen hammer: 260g+/-1g

Weight of load hammer: 2385g+/-10g

Dimension: 850mm×600mm×400mm

Weight: 90 Kgs

Power: 110V/220V, 50Hz/60Hz
