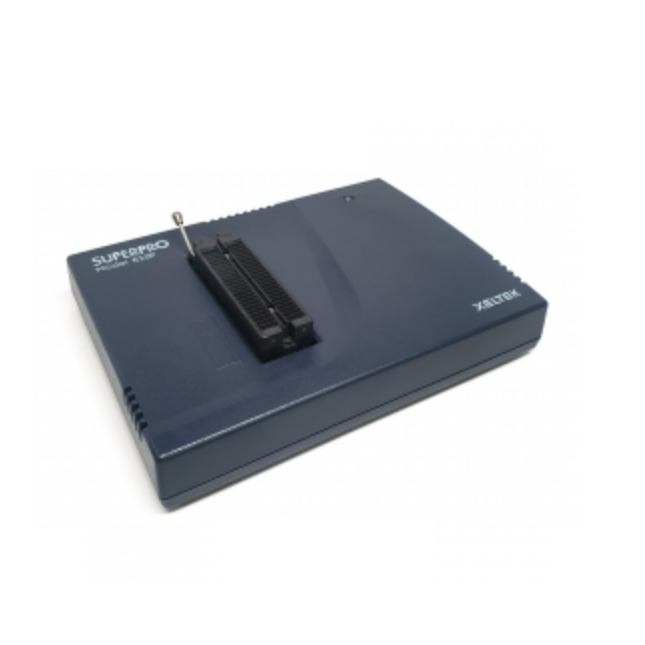

Xeltek SuperPro 610P High Speed Universal Device Programmer

Devices supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU

Package types supported: DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc.

PC interface: USB 2.0

Power supply: AC Adapter

+ Input: AC 100V- 240V

+ Output: 12V/1.5A

Dimensions

+ Main unit: 178(L)x130(W)x40(H) mm

+ Package: 320(L)x300(W)x85(H) mm

Weight:

+ Main unit: 0.85lbs (0.38kg)

+ Package: 3lbs (1.8kg)
