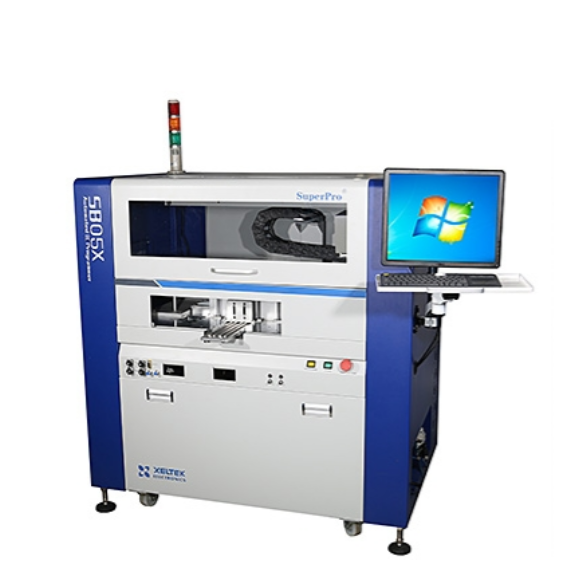

Xeltek SuperBOT 5Xe Fully Automated IC Programmer (32 sockets; 16 adapters)

Units per hour: 2.000

Nozzles: Dual

Tray: Single manual tray

Sockets: 32

Adapters: 16

Vision check: Dual Camera

Tape input: Dual

Chip Size: Min: 2x2mm, Max: 25x25mm

Air:

Pressure: 0.6MPa

Consumption: 50 liters/min

Main hardware and OS:

Operation system: Windows™

Computer: Built-in Industrial PC

Hardware: SuperPro X108

Remote access: LAN Supported

Electrical:

Power adapter type: AC

Output: 220V

Power consumption: 1.5KW

Dimensions:

Width(X): 850mm

Depth(Y): 1250mm

Height(Z): 1400mm

Weight: 300kg

Optional accessories: Tray (up to 20 trays), tape in/out, tube in/out, and laser or ink marking
