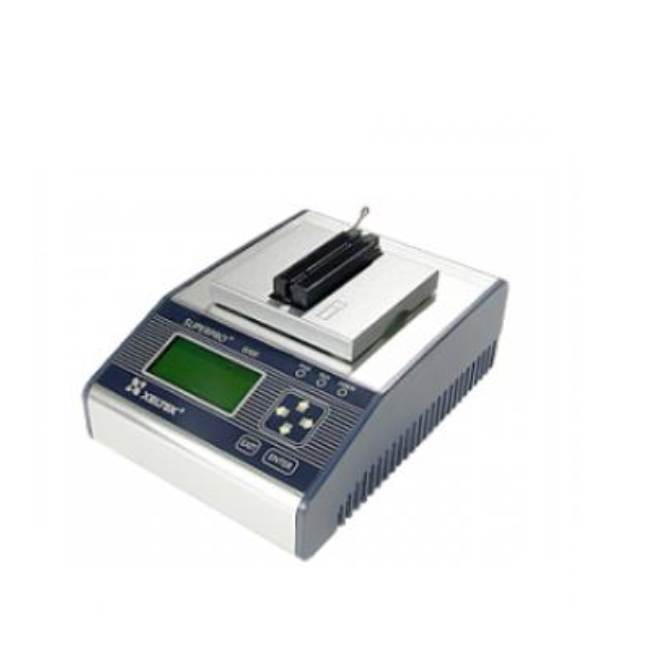

Xeltek Ref SuperPro 6000 Universal IC Chip Device Programmer (88,000+ devices supported)

Devices supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU

Package types supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP

PC interface: USB2.0 (High speed)

Stand-alone memory: Compact FLASH Card

Power supply: AC Adapter

+ Input: AC 100V- 240V

+ Output: 12V/1.5A

Dimensions

+ Main unit: 148(L)x216(W)x94(H) mm

+ Package: 301(L)x252(W)x145(H) mm

Weight:

+ Main unit: 3.5lbs (1.6kg)

+ Package: 6.2lbs (2.8kg)

Items Included:

+ SuperPro 6000 Programmer with a DIP48 Adapter

+ AC adapter

+ Software CD

+ USB Cable

Brochure

Manual

Device List

https://www.xeltek.com/software/sp6000/sp6000Device.php
