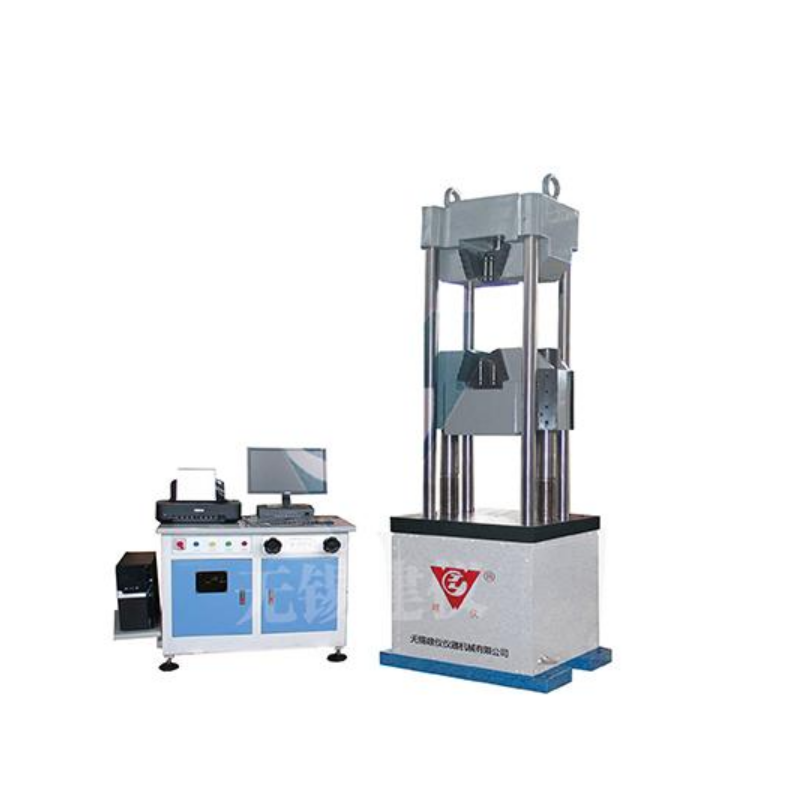

Wuxi WEW-2000 Universal Testing Machine (2000kN)

Maximum test force: 2000kN

Test force measurement range: 80～2000kN

Maximum distance between stretching clamps (including piston stroke)700

Maximum distance between upper and lower pressure plates (including piston stroke): 600mm

Distance between columns: 580mm

Maximum piston stroke: 250mm

Circle sample clamping range: φ20 ～φ40mm/ φ40 ～φ70mm

Flat sample clamping range: 10 ～50mm

Total power: About 5kW

Main frame size: 1200×850×2900mm

Dimensions of measurement and control box: 1100×680×800mm

Net weight: About 5400kg

Used in metal material tensile, compression, shear and bending test, also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008.Meet GB/T228.1-2010, GB/ t232-2010.
