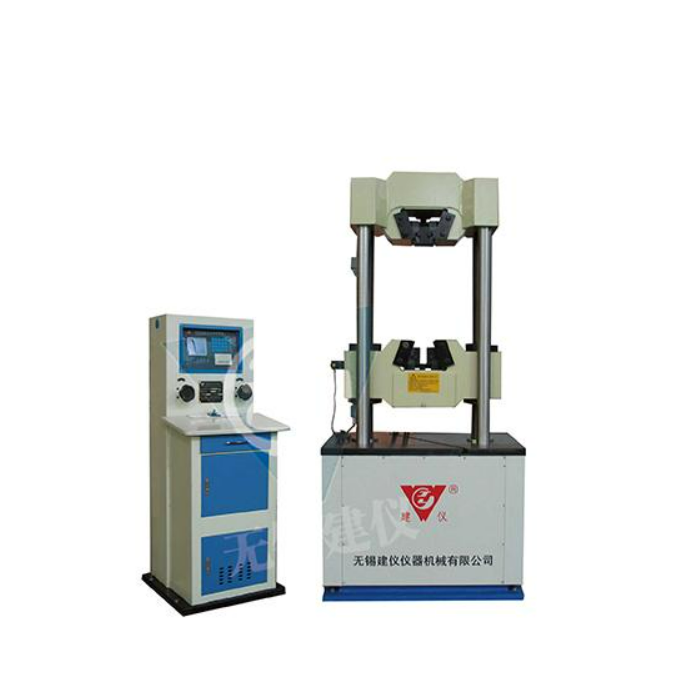

Wuxi WEW-1000A Universal Testing Machine (1000kN)

Max testing force: 1000kN

Range of measurement: 20-1000kN

Test force indicator accuracy: ±1%

Displacement indicator accuracy: ±1%

Maximum distance between upper and lower pressure plates (including piston stroke): 580mm

The distance between the column: 470mm

Piston stroke: 250mm

The circle sample holds the diameter: φ20～φ60mm

Flat sample holder diameter: 0-40mm

Upper pressure plate size: 205×205mm

Lower pressure plate size: Φ205mm

Maximum distance between bending rollers: 300mm

Power supply: 380V 50Hz 2.2kW

Overall dimension: 1000×700×2200mm

Measurement system size: 660×600×1520mm

Suttle: 2750kg

WEW series on A universal testing machine is mainly used for metal material tensile, compression, shear and bending test,  also can do concrete, brick, stone and other non-metallic materials compression test. It conforms to GB/ t2611-2007, GB/ t16491-2008, GB/ t16826-2008, meet GB/T228.1-2010, GB/ t232-2010.
