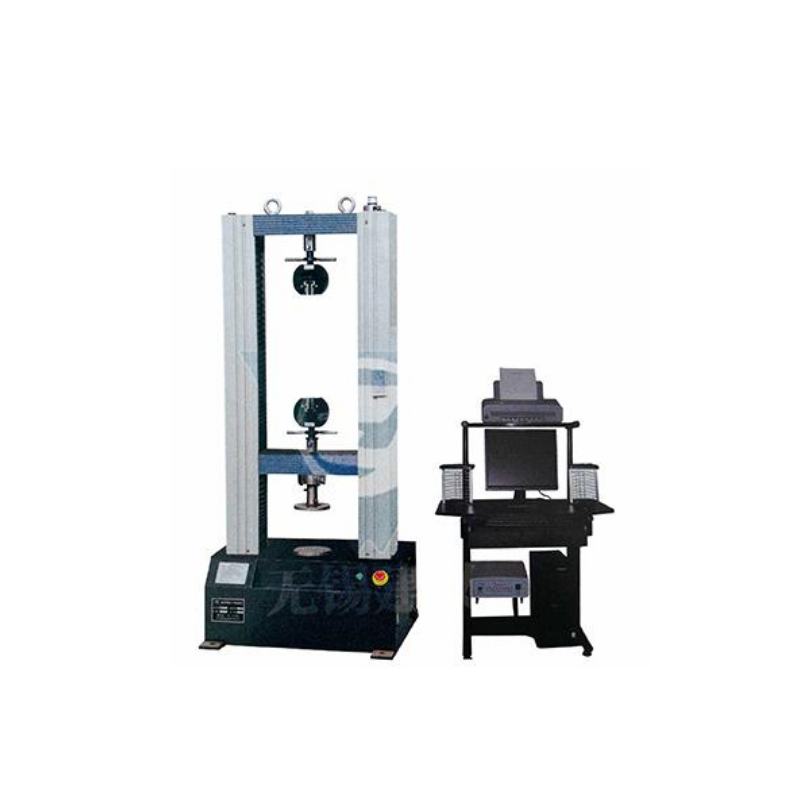

Wuxi WED-100E Electronic Universal Testing Machine (100kN)

Maximum test force: 100kN

Measurement range: 2%-100% FS

Display value accuracy: ±1%

Test resolution: 1/300000

Deformation measurement accuracy: ±1%

Speed accuracy: ±1%

Speed range: 0.01-500 mm/min

Tensile test space: 600mm

Compression test space: 700mm

Effective test width: 400mm

Circular specimen clamping diameter: Φ4～φ14mm

Flat specimen clamping diameter: 0-14mm

The power supply: 220V±10%,50Hz

Dimensions: 830x550x2000mm

Weight of measurement system: 500kg

WED E series microcomputer control electronic universal testing machine is mainly used for metal, nonmetal materials tensile, compression, bending, shear, tear and other mechanical properties test and analysis, according to GB, ISO, JIS, ASTM, DIN.
